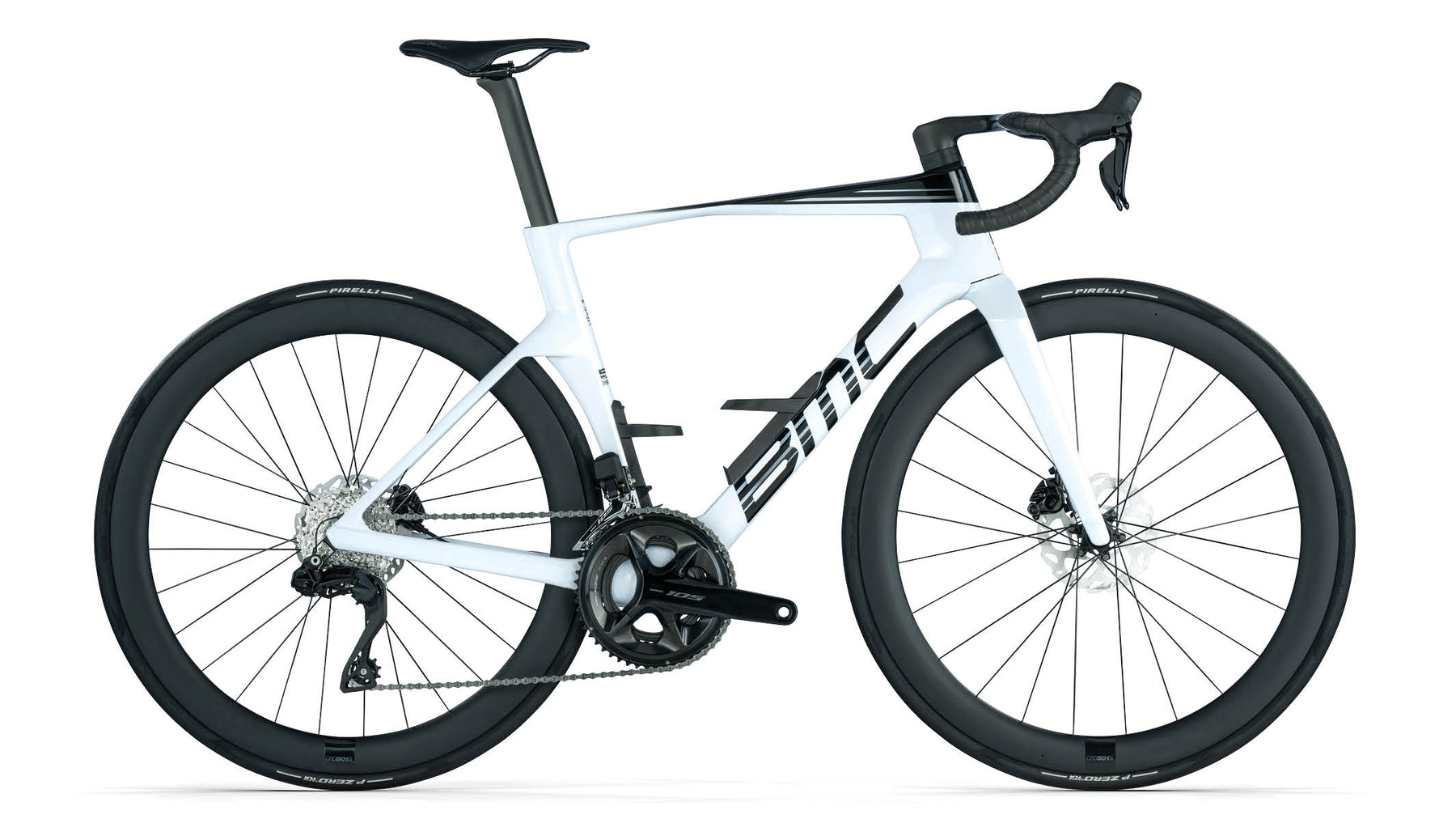

Name: Teammachine R 01 FIVE
Brand: BMC
SKU: 30006853
Price: 6999.0 EUR
Availability: OutOfStock

Cool White / Black

Every detail counts when every pedal stroke matters. This road bike is engineered with victory in mind, designed to claim the highest spot on the podium.

EUR 6.999,00

SKU: 30006853

Size —

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":54854854508930,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30006853","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 FIVE - 47","public_title":"47","options":["47"],"price":699900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906521526","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54854854541698,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30006854","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 FIVE - 51","public_title":"51","options":["51"],"price":699900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906521519","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54854854607234,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30006855","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 FIVE - 54","public_title":"54","options":["54"],"price":699900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906521502","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54854854705538,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30006856","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 FIVE - 56","public_title":"56","options":["56"],"price":699900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906521496","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54854854771074,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30006857","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 FIVE - 58","public_title":"58","options":["58"],"price":699900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906521489","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54854854869378,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30006858","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine R 01 FIVE - 61","public_title":"61","options":["61"],"price":699900,"weight":15000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906521472","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Unleashing Performance Beyond Limits. Every pedal stroke matters. Engineered in collaboration with Red Bull Advanced Technologies, the Teammachine R 01 FIVE carbon road bike sets a new benchmark for racing excellence. Designed to perform under the most demanding conditions, this racing bike comes equipped with a Shimano 105 Di2 Drivetrain, aero optimized CR 50 Carbon wheelset, and BMC’s cutting-edge ICS Aero one piece Cockpit. Experience unparalleled speed and precision every race day of your season.

Technology

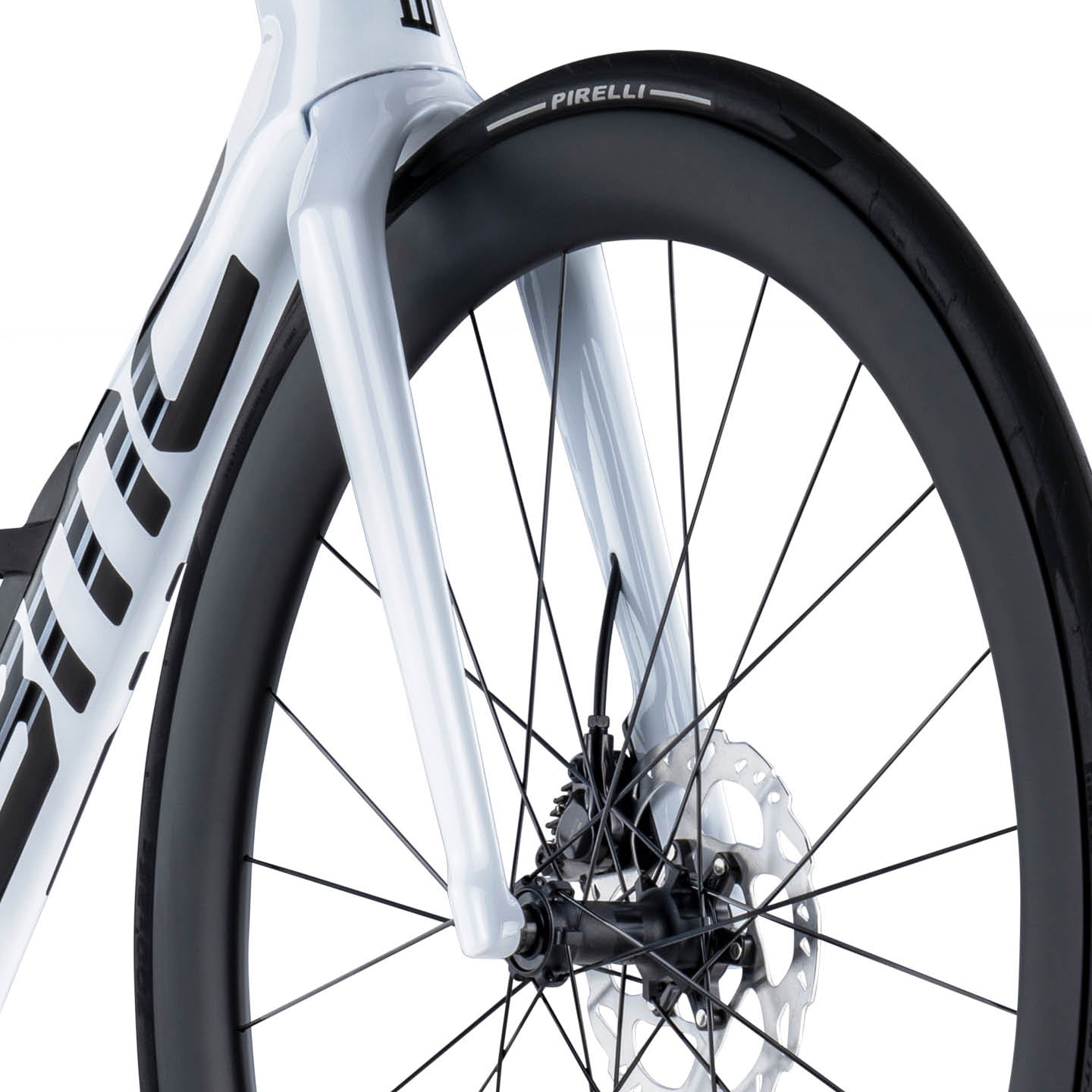

Halo Fork

The ultrawide fork legs are unlike anything else seen in the peloton and help keep turbulent air, created by the front wheel, away from the frame.

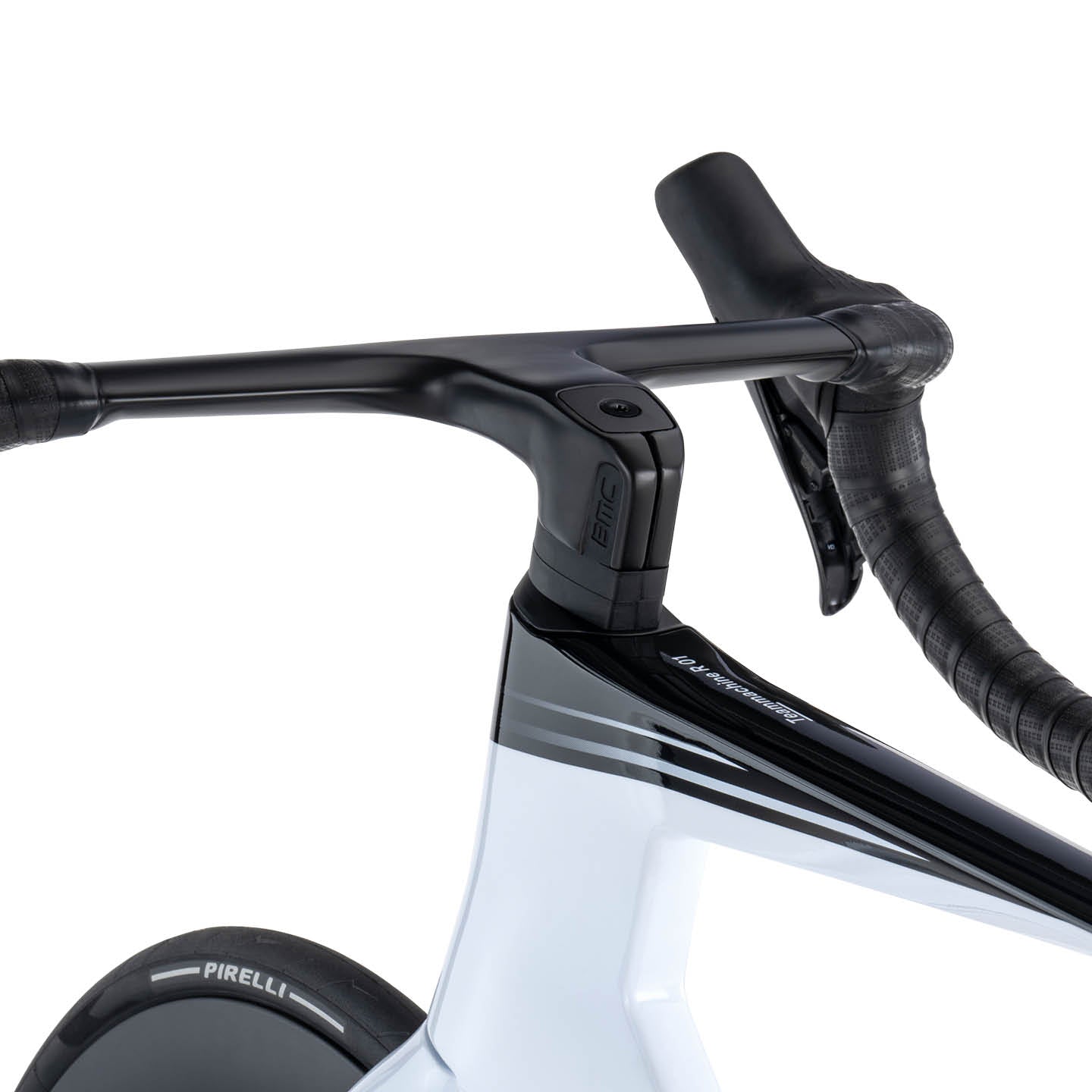

ICS Carbon Aero Cockpit

The ICS Carbon Aero Cockpit, with its progressive and aerodynamic shape, is the perfect match for this bike. Featuring a narrow top width, allowing an efficient aero position with a greater width at the drops providing incredible control at high speed.

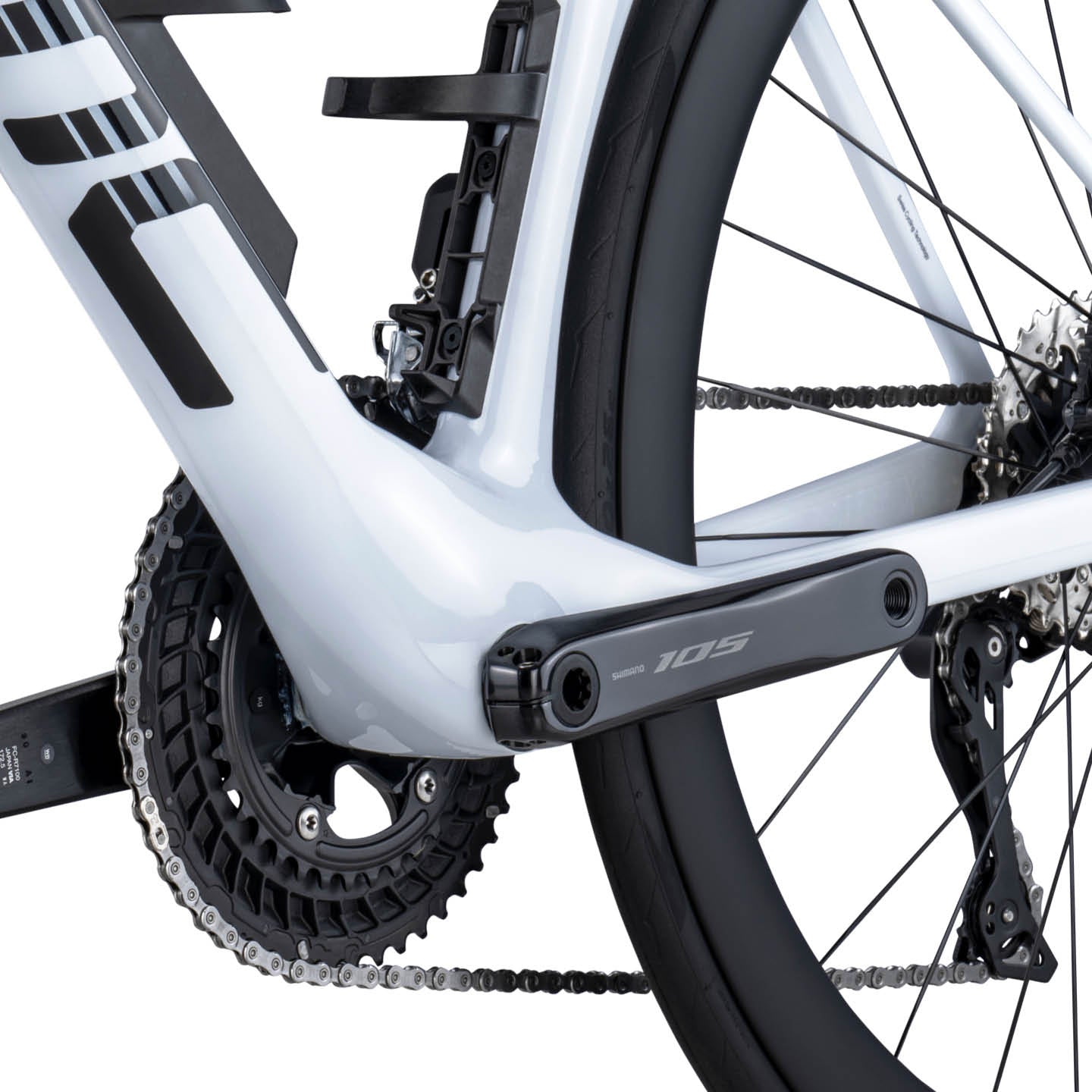

Deep Bottom Bracket Area

We call it the “Mariana Bottom Bracket” because it’s the deepest bottom bracket we have ever made on a road bike and this perfectly optimizes the surface area for cleaner airflow.

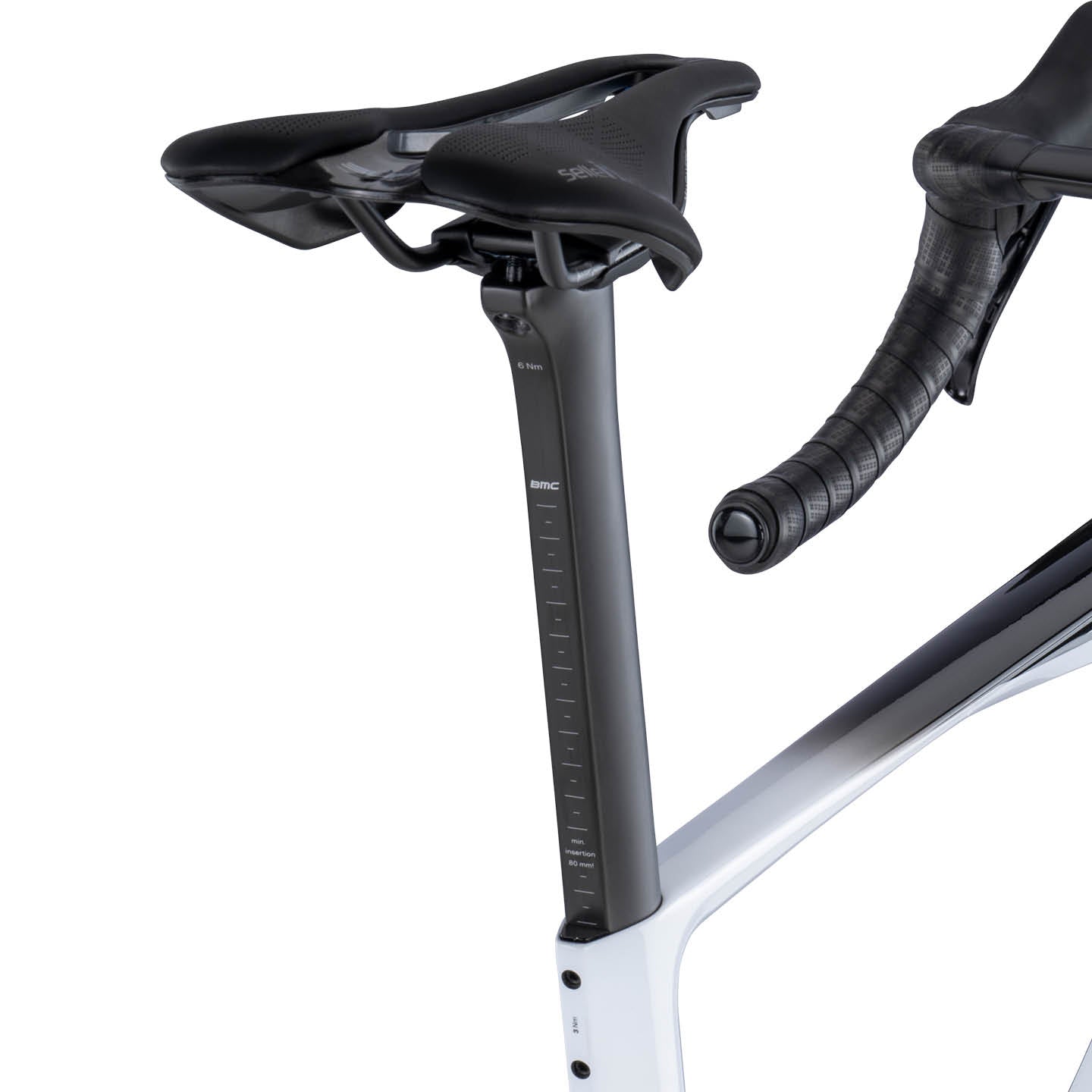

All-new Seatpost

The new seatpost is slimmer, deeper, more compliant, and lighter than ever. With the new seatpost clamp mechanism now easier to access and maintain, including an integrated number plate holder making it the smartest way to get race-ready.

Technical Overview

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Selle Italia SLR Boost Superflow | Manganese Rail | 145mm

Drivetrain

Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
52-36T

Cassette:
SHIMANO 105 (CS-R7101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M6100

Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
SHIMANO Press Fit SM-BB72

Brakes

Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO SM-RT70 | Centerlock [or] SHIMANO 105 (RT-CL700)

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CR 50 Carbon | Tubeless Ready | 50mm

Hubs (F/R):
TXC-812 & TXC-240 Centerlock

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Rim | Tubeless Tires

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.8kg | Size 54 with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Drop	135	135	135	135	135	135
Bar Reach	77	77	77	77	77	77
Bar Width	360/420	360/420	360/420	360/420	360/420	360/420
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	185	211
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	74	74	73.5	73.5	73	73
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Standover Height	721	755	781	799	813	836
Stem Angle	-15	-15	-15	-15	-15	-15
Stem Length	90	100	100	110	110	120
Top Tube	522	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
