Fourstroke 01 LTD

COOL WHITE / BLACK

SRAM XX SL Eagle Transmission Drivetrain
Fox Float 34 SC Factory Fork / Fox Float DPS EVOL LV Factory Shock
DT Swiss XRC 1200 Wheelset

Regular price€12.999,00
/
Tax included.

SKU: 30005360
Size

Fourstroke 01 LTD

Parts & Accessories

  • Shipped to your local bike shop

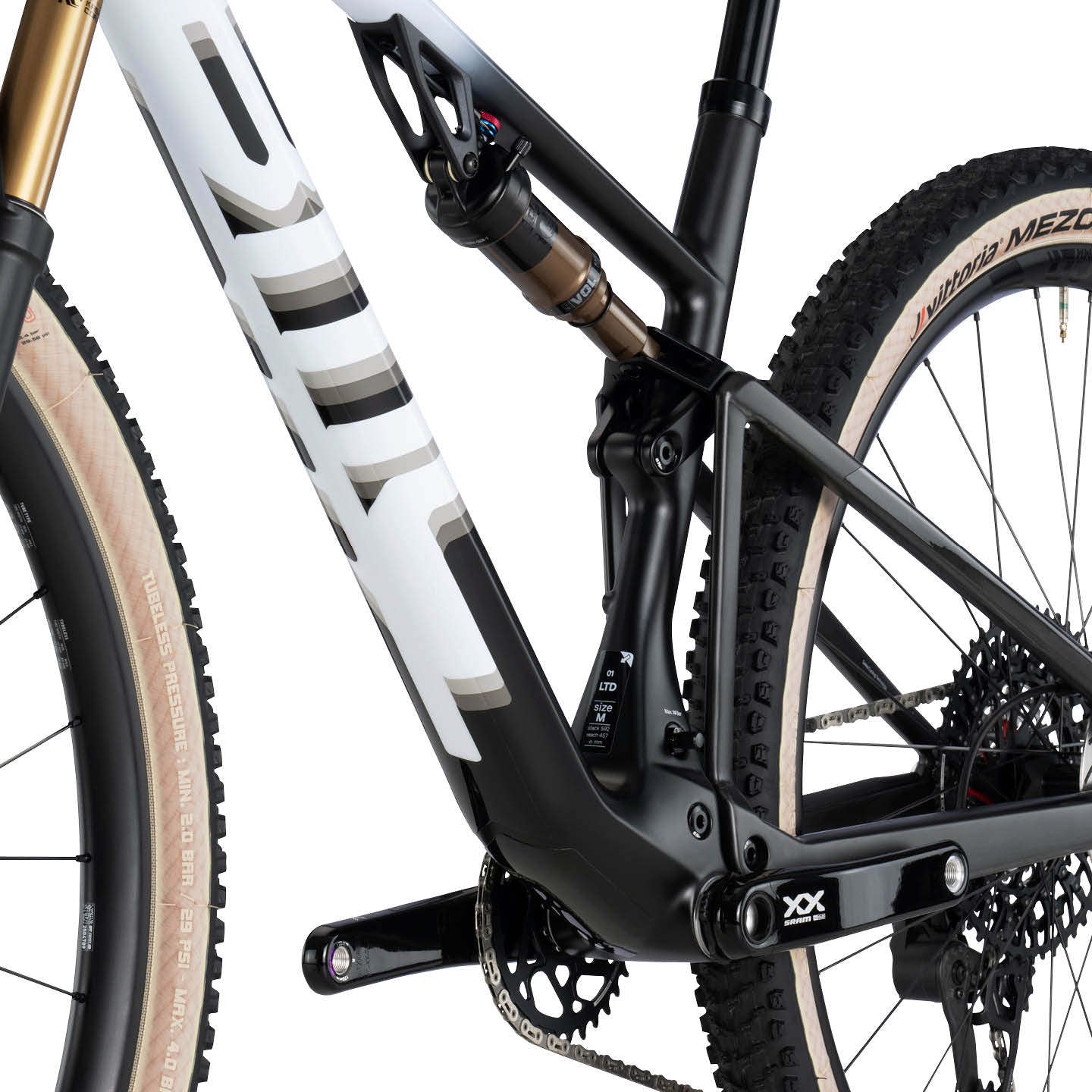

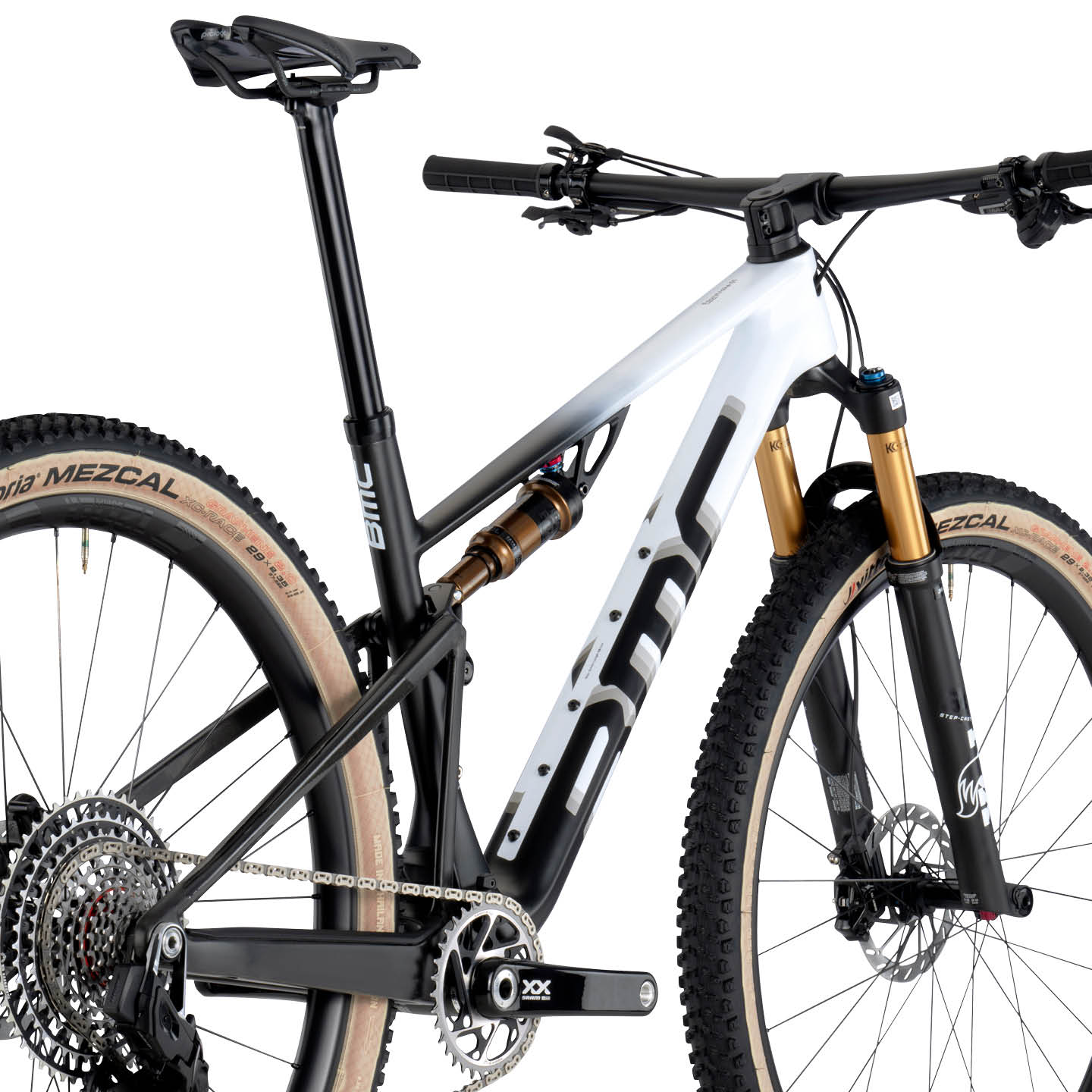

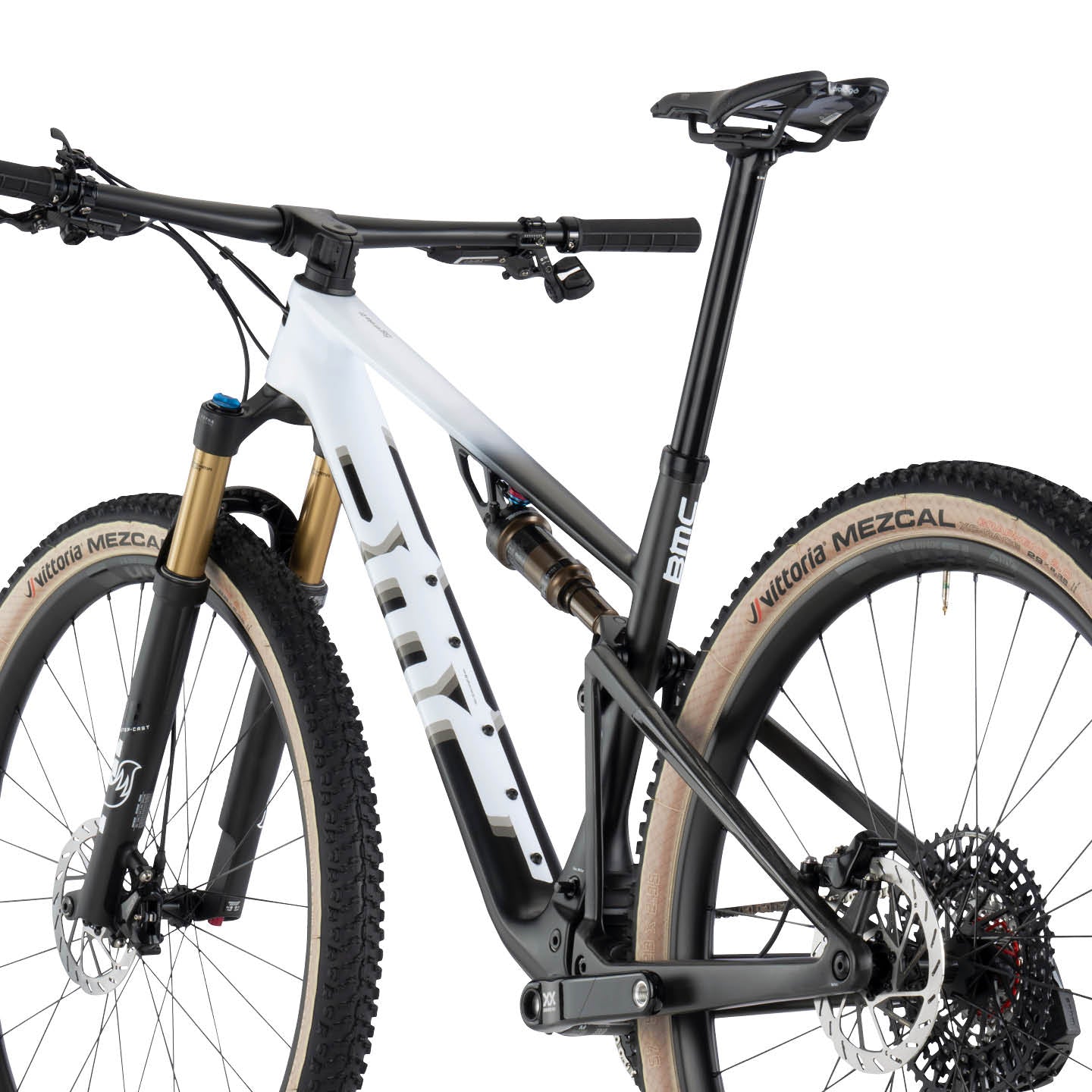

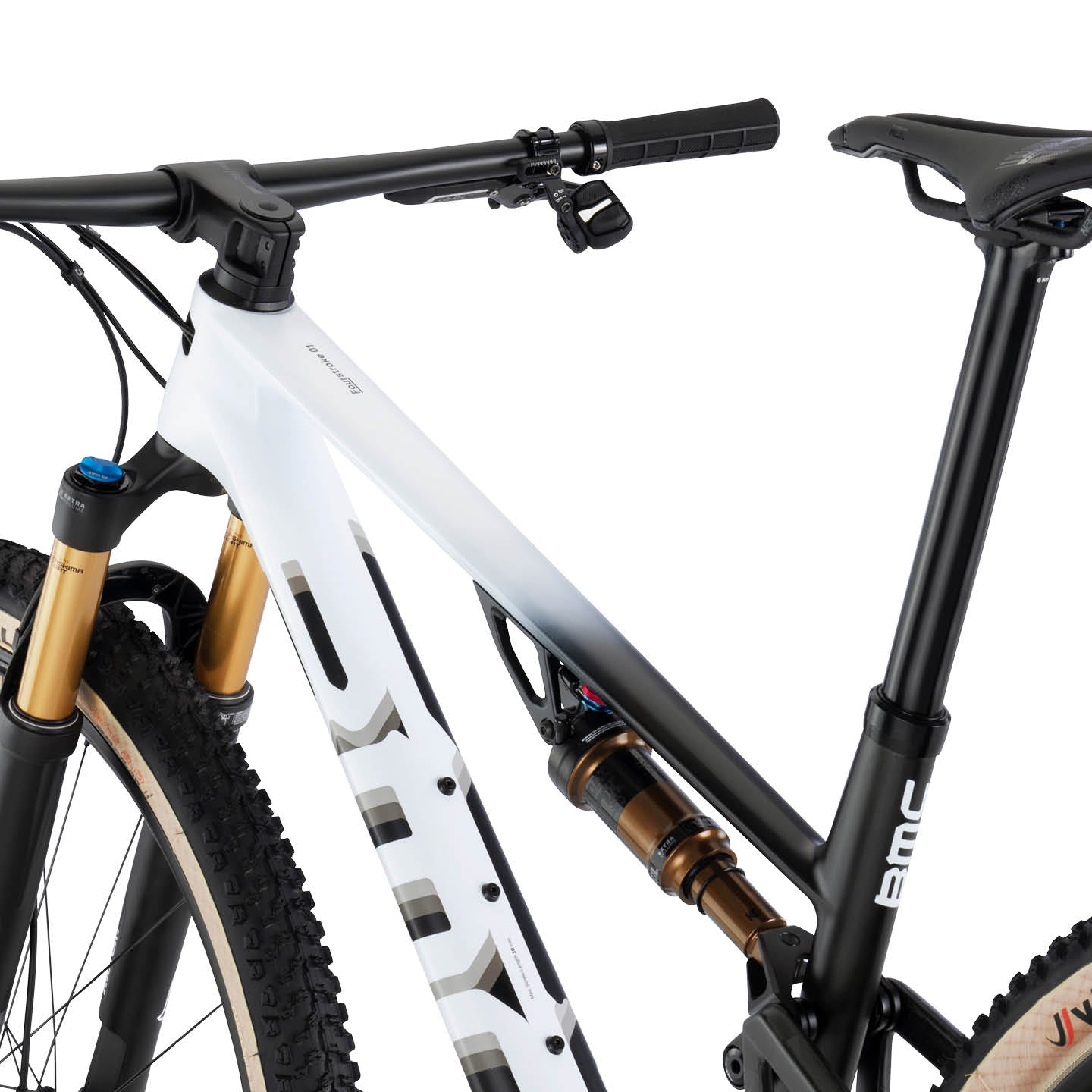

Fourstroke 01 is an XCO performance bike that exceeds the demands of the world’s top racers. On a mission to set the pace with our unique Autodrop technology and unrivalled APS dual-link suspension with 100mm of front and rear travel, it bests the competition in a Premium Carbon frame. This revolutionized racing machine arrives with integrated protection and is designed around the progressive BWC geometry, now accommodating two water bottles in the front triangle for long-distance missions. Fourstroke 01 LTD is a medal winning machine with the innovative SRAM XX SL Eagle Transmission drivetrain, Fox Float 34 SC Factory fork and Fox Float DPS EVOL LV Factory shock, DT Swiss XRC 1200 wheels and the BMC Autodrop integrated dropper seatpost.

Technology

Technical Overview

Frameset

Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:
Fox Float 32 SC Factory | Kashima Coating

Suspension

Front Suspension:
Fox Float 34 SC Factory | Kashima Coating}

Rear Suspension:
Fox Float DPS EVOL LV Factory | Kashima Coating

Remote Lockout:
DT Swiss Remote Lockout

Cockpit

Stem:
BMC MSM 01

Handlebar:
BMC MFB 01 Carbon | 760mm

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Saddle:
Prologo Dimension NDR

Drivetrain

Crankset:
SRAM XX SL Eagle Carbon

Chainrings:
34T

Cassette:
SRAM XX SL Eagle Transmission XS-1299

Cassette Size:
10-52T

Chain:
SRAM XX SL Eagle Transmission Flattop

Rear Derailleur:
SRAM XX SL Eagle Transmission

Shifters:
SRAM AXS Pod Controller

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Level Ultimate

Rotors:
SRAM HS2 | Centerlock

Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL

Wheels

Rims:
DT Swiss XRC 1200 | 30mm Inner Width

Hubs (F/R):
DT Swiss 180 Straightpull | Ratchet EXP 36 | SINC Ceramic Bearings

Tires:
Vittoria Mezcal | 2.35"

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
62mm

Weight without Pedals:

ASTM Classification:
Level 3

System Weight Limit:
110kg

Size S M L XL
Rider Height <172 172-182 180-188 >188
Reach 437 457 477 500
Stack 584 592 600 615
Bar Rise 4 4 4 4
Bar Sweep 8 8 8 8
Bar Width 760 760 760 760
BB Drop 53 53 53 53
Crank Length 170 170 175 175
Fork Length 513 513 513 513
Fork Rake 44 44 44 44
Front Center 714 738 762 791
Head Tube 83.84 93.5 101.25 117.58
Head Tube Angle 66.5 66.5 66.5 66.5
Rear Center 432 432 432 432
Seat Angle 76.7 76.7 76.7 76.7
Seat Tube 420 440 470 510
Seatpost Drop 80 80 80 80
Standover Height 725 725 725 725
Stem Angle -5 -5 -5 -5
Stem Length 50 60 60 70
Top Tube 574 597 621.2 649.23
Trail 113 113 113 113
Wheelbase 1139 1171 1188 1218
