BMC-23-10503-008

Fourstroke 01 TWO

ACID YELLOW / CARBON

SRAM Gx Eagle AXS Drivetrain
RockShox SID SL Select+ Fork / RockShox SIDLuxe Select+ Shock
DT Swiss XR 1700 Wheelset, 25mm Inner Width

Regular price€8.999,00
/
Tax included.

SKU: 30002648
Size

Fourstroke 01 TWO

Parts & Accessories

  • Shipped to your local bike shop

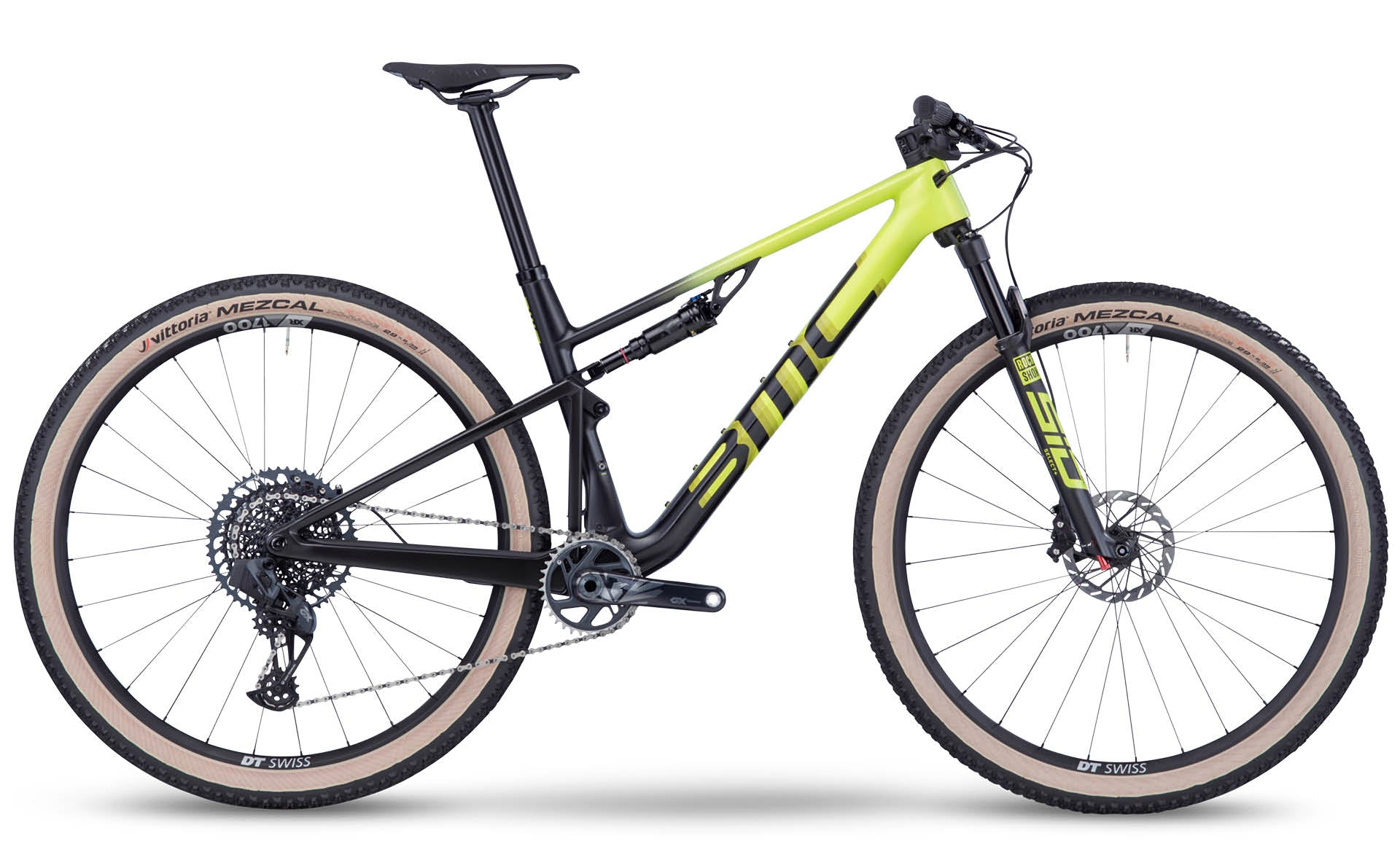

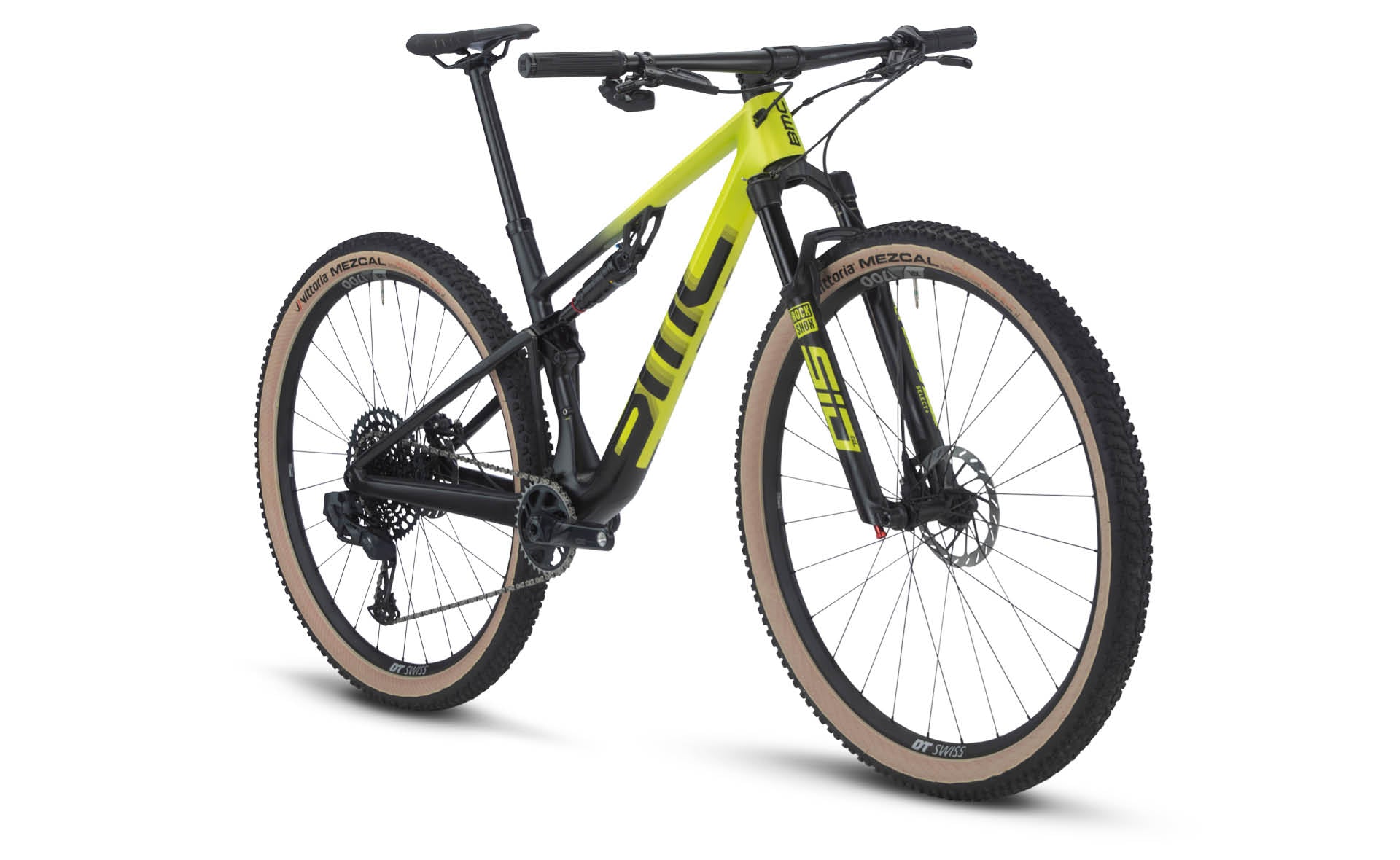

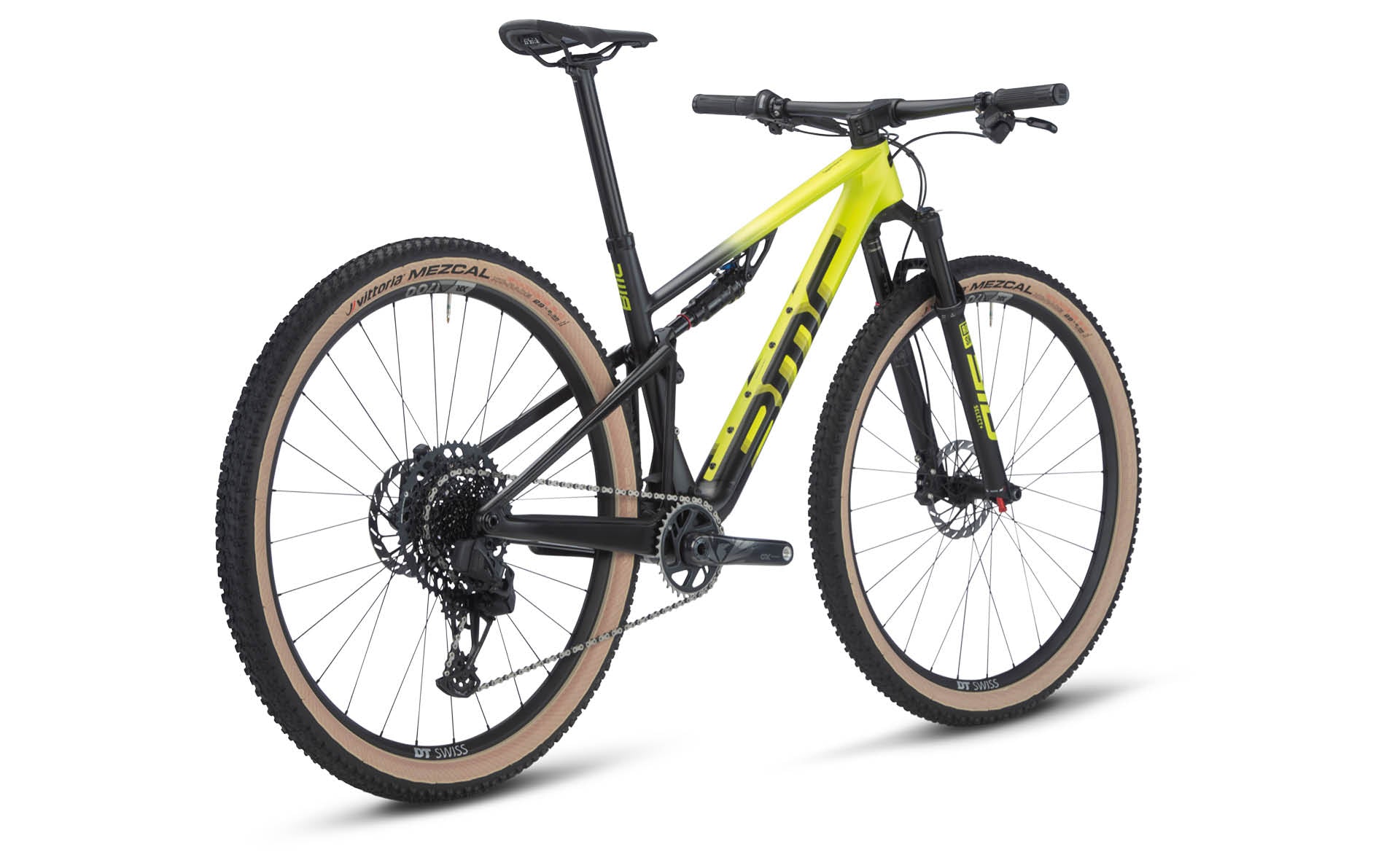

Fourstroke 01 is an XCO performance bike that exceeds the demands of the world’s top racers. On a mission to set the pace with our unique Autodrop technology and unrivalled APS dual-link suspension with 100mm of front and rear travel, it bests the competition in a Premium Carbon frame. This revolutionized racing machine arrives with integrated protection and is designed around the progressive BWC geometry, now accommodating two water bottles in the front triangle for long-distance missions. Stay ahead of the competition with the Fourstroke 01 TWO matched with a SRAM Gx Eagle AXS drivetrain, RockShox SID SL Select+ fork and RockShox SIDLuxe Select+ shock, DT Swiss XR 1700 wheelset with 25mm inner width and the BMC Autodrop integrated dropper seatpost.

Technology

Technical Overview

Frameset

Frame:
Fourstroke 01 Premium Carbon with Autodrop Technology | APS Suspension System | 100mm Travel | Fully Guided Internal Cable Routing | Post Mount Disc | 12 x 148mm Boost Thru-Axle

Fork:
RockShox SID SL Select+

Suspension

Front Suspension:
RockShox SID SL Select+

Rear Suspension:
RockShox SIDLUXE Select+

Remote Lockout:
TwistLoc Lockout

Cockpit

Stem:
BMC MSM 01

Handlebar:
BMC MFB 01 Carbon | 760mm

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Saddle:
Fizik Antares R7

Drivetrain

Crankset:
SRAM GX Eagle Carbon

Chainrings:
34T

Cassette:
SRAM GX XG-1275 Eagle

Cassette Size:
10-52T

Chain:
SRAM GX Eagle

Rear Derailleur:
SRAM GX Eagle AXS

Shifters:
SRAM AXS Controller

Gears:
1 x 12

Bottom Bracket:
PF92 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Level TLM

Rotors:
SRAM HS2

Rotor Size (F/R):
160 / 160 S-M | 180 / 160 L-XL

Wheels

Rims:
DT Swiss XR 1700 | 25mm Inner Width

Hubs (F/R):
DT Swiss 350 Straightpull | Ratchet 36 SL

Tires:
Vittoria Mezcal | 2.35"

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
62mm

ASTM Classification:
Level 3

System Weight Limit:
110kg

SizeSMLXL
SCOR Size
Rider Height<172172-182180-188>188
Reach437457477500
Stack584592600615
Bar Drop
Bar Reach
Bar Rise4444
Bar Sweep8888
Bar Width760760760760
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop53535353
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length513513513513
Fork Rake44444444
Front Center714738762791
Front Center (SLACK)
Front Center (STEEP)
Head Tube83.8493.5101.25117.58
Head Tube Angle66.566.566.566.5
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center432432432432
Saddle Height Range
Seat Angle76.776.776.776.7
Seat Tube420440470510
Seatpost Drop80808080
Seatpost Length
Seatpost Offset
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height725725725725
Stem Angle-5-5-5-5
Stem Length50606070
Top Tube574597621.2649.23
Top Tube (SLACK)
Top Tube (STEEP)
Trail113113113113
Wheelbase1139117111881218
Wheelbase (SLACK)
Wheelbase (STEEP)
