Technical Overview
Frameset
Frame:

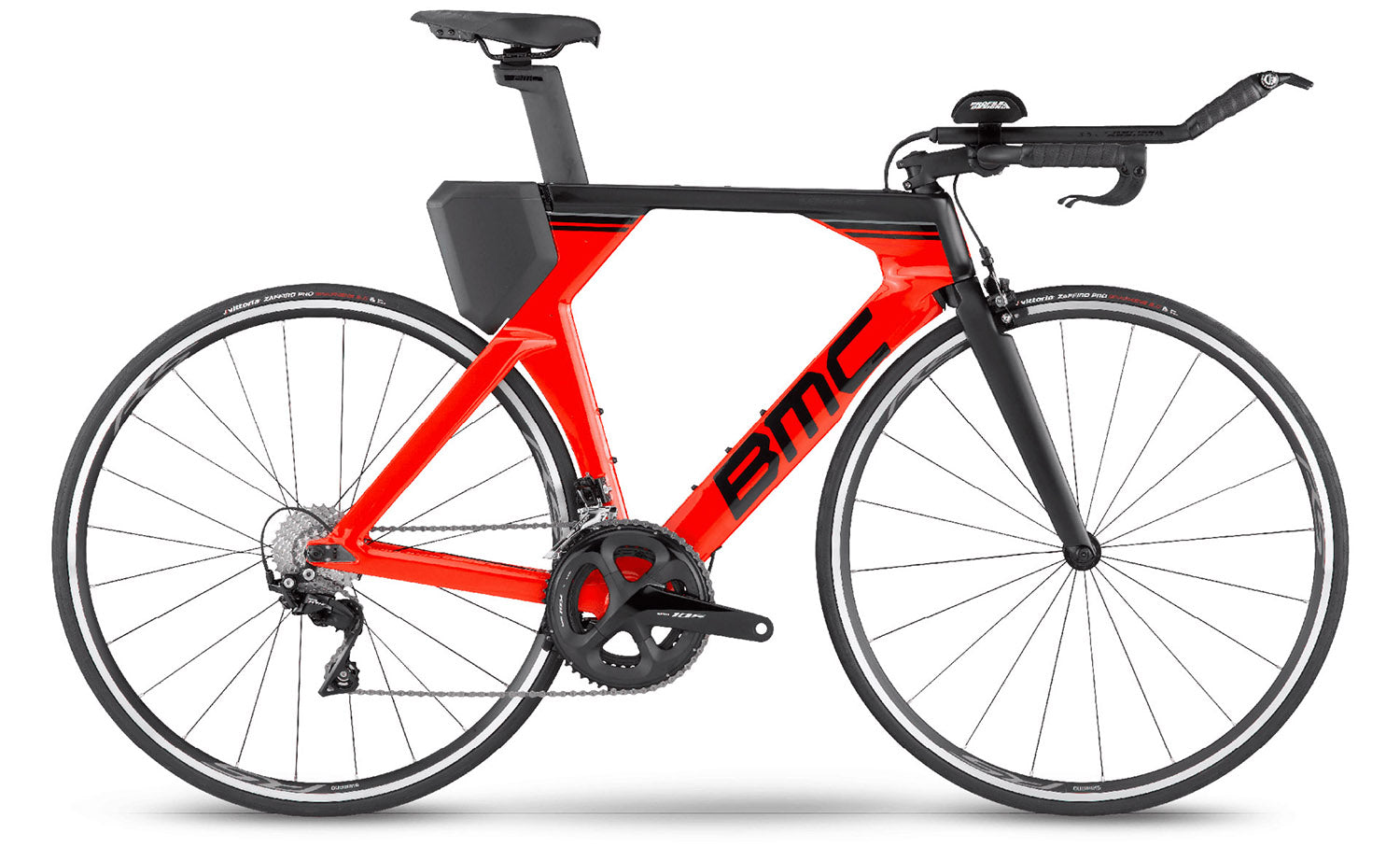

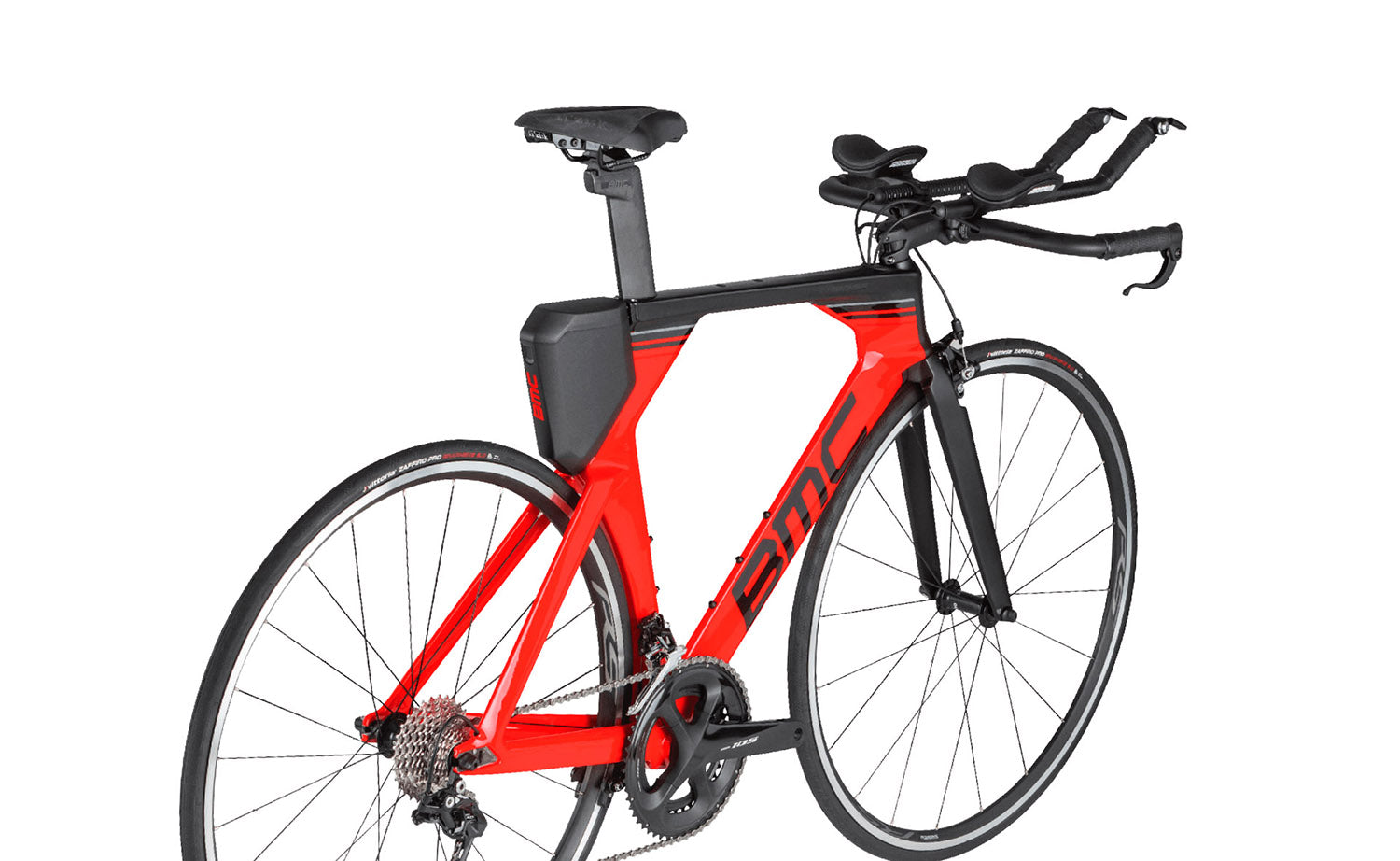

Timemachine Carbon with Vmax Aero Design and P2P Positioning SyStem | P2P Dual-Mount Aeropost Configuration | Internal Di2 Battery Mount | Rear Storage Box | Sliding Dropouts
Fork:
Timemachine Carbon with Vmax Aero Design Hinge Design
Suspension
Front Suspension:
Rear Suspension:
Remote Lockout:
Cockpit
Stem:
BMC RSM 01
Handlebar:
Profile WING 10a Basebar | Sonic Ergo 35A Aerobar
Grips:
Seat
Seatpost:
Timemachine Carbon V-Max Aero Seatpost | 62mm Offset adjustment | P2P Dual-Mount Aeropost Configuration | Triathlon & Time Trial
Saddle:
Fizik Mistica Mg
Drivetrain
"
Crankset:
#spec_crankset
Chainrings:
SHIMANO HG601rings
Power Meter:
#spec_power_meter
Cassette:
#spec_cassette
Cassette Size:
#spec_cassette_size
Chain:
#spec_chain
Front Derailleur:
SHIMANO 105 (FD-R7000)
Rear Derailleur:
SHIMANO 105 (RD-R7000)
Shifters:
SHIMANO Dura Ace (SL-BSR1) Bar End
Gears:
2 x 11
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SHIMANO 105 (BR-R7010) Direct Mount
Rotors:
Rotor Size (F/R):
Wheels
Rims:
SHIMANO WH-RS100 | 24mm
Hubs (F/R):
SHIMANO WH-RS100
Tires:
Vittoria Zaffiro Pro | 25mm
Accessories
Aerocore Bottle Cages
Additional Information
Tire Clearance:
27mm
Weight without Pedals:
ASTM Classification:
Level 1
System Weight Limit:
110kg
| Size | S | S-M | M-L | L |
|---|---|---|---|---|
| Rider Height | <170 | 172-180 | 178-188 | 186-196 |
| Reach | 393 | 377 | 418 | 442 |
| Stack | 480 | 515 | 515 | 556 |
| Bar Drop | ||||
| Bar Reach | 160 | 160 | 160 | 160 |
| Bar Rise | ||||
| Bar Sweep | ||||
| Bar Width | 400 | 420 | 420 | 420 |
| Base Bar Drop Flat Cockpit | ||||
| Base Bar Drop V-Cockpit | ||||
| Base Bar Reach Flat Cockpit | ||||
| Base Bar Reach V-Cockpit | ||||
| BB Drop | 58 | 68 | 68 | 68 |
| BB Drop (SLACK) | ||||
| BB Drop (STEEP) | ||||
| BB Height (SLACK) | ||||
| BB Height (STEEP) | ||||
| Chainstay | ||||
| Crank Length | 165 | 170 | 170 | 172.5 |
| LT | BB Drop (SLACK) | ||||
| LT | BB Drop (STEEP) | ||||
| LT | BB Height (SLACK) | ||||
| LT | BB Height (STEEP) | ||||
| LT | Chainstay | ||||
| LT | Fork Length | ||||
| LT | Fork Rake | ||||
| LT | Frame Size | ||||
| LT | Front Center (SLACK) | ||||
| LT | Front Center (STEEP) | ||||
| LT | Head Tube | ||||
| LT | HT Angle (SLACK) | ||||
| LT | HT Angle (STEEP) | ||||
| LT | Reach (SLACK) | ||||
| LT | Reach (STEEP) | ||||
| LT | Rider Height | ||||
| LT | Seat Tube | ||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||
| LT | ST Angle Actual (SLACK) | ||||
| LT | ST Angle Actual (STEEP) | ||||
| LT | ST Angle Effective (SLACK) | ||||
| LT | ST Angle Effective (STEEP) | ||||
| LT | Stack (SLACK) | ||||
| LT | Stack (STEEP) | ||||
| LT | Stand Over Height (80 in Front of BB) | ||||
| LT | Stand Over Height (Lowest Point) | ||||
| LT | Top Tube (SLACK) | ||||
| LT | Top Tube (STEEP) | ||||
| LT | Wheelbase (SLACK) | ||||
| LT | Wheelbase (STEEP) | ||||
| ST | BB Drop (SLACK) | ||||
| ST | BB Drop (STEEP) | ||||
| ST | BB Height (STACK) | ||||
| ST | BB Height (STEEP) | ||||
| ST | Chainstay | ||||
| ST | Fork Length | ||||
| ST | Fork Rake | ||||
| ST | Frame Size | ||||
| ST | Front Center (SLACK) | ||||
| ST | Front Center (STEEP) | ||||
| ST | Head Tube | ||||
| ST | HT Angle (SLACK) | ||||
| ST | HT Angle (STEEP) | ||||
| ST | Reach (SLACK) | ||||
| ST | Reach (STEEP) | ||||
| ST | Rider Height | ||||
| ST | Seat Tube | ||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||
| ST | ST Angle Actual (SLACK) | ||||
| ST | ST Angle Actual (STEEP) | ||||
| ST | ST Angle Effective (SLACK) | ||||
| ST | ST Angle Effective (STEEP) | ||||
| ST | Stack (SLACK) | ||||
| ST | Stack (STEEP) | ||||
| ST | Stand Over Height (80 in Front of BB) | ||||
| ST | Stand Over Height (Lowest Point) | ||||
| ST | Top Tube (SLACK) | ||||
| ST | Top Tube (STEEP) | ||||
| ST | Wheelbase (SLACK) | ||||
| ST | Wheelbase (STEEP) | ||||
| Fork Length | 374 | 374 | 374 | 374 |
| Fork Rake | 45 | 45 | 45 | 45 |
| Frame Size | ||||
| Front Center | 580 | 578 | 619 | 649 |
| Front Center (SLACK) | ||||
| Front Center (STEEP) | ||||
| Head Tube | 97 | 111 | 111 | 153 |
| Head Tube Angle | 71.5 | 71.5 | 71.5 | 71.5 |
| HT Angle (SLACK) | ||||
| HT Angle (STEEP) | ||||
| Pad Reach Flat Cockpit | ||||
| Pad Reach V-Cockpit | ||||
| Pad Stack Flat Cockpit | ||||
| Pad Stack V-Cockpit | ||||
| Reach (SLACK) | ||||
| Reach (STEEP) | ||||
| Rear Center | 393-404 | 393-404 | 393-404 | 393-404 |
| Saddle Height Range | 630 - 780 | 660 - 850 | 660 - 850 | 700 - 880 |
| Seat Angle | 71.5 - 80.8 | 71.5 - 80.8 | 71.5 - 80.8 | 71.5 - 80.8 |
| Seat Tube | 495 | 550 | 550 | 592 |
| Seatpost Drop | ||||
| Seatpost Length | ||||
| Seatpost Offset | 27 / 9 / -9 / -27 | 27 / 9 / -9 / -27 | 27 / 9 / -9 / -27 | 27 / 9 / -9 / -27 |
| ST Angle @750mm Saddle Height (SLACK) | ||||
| ST Angle @750mm Saddle Height (STEEP) | ||||
| ST Angle Actual (SLACK) | ||||
| ST Angle Actual (STEEP) | ||||
| ST Angle Effective (SLACK) | ||||
| ST Angle Effective (STEEP) | ||||
| Stack (SLACK) | ||||
| Stack (STEEP) | ||||
| Stand Over Height (80 in Front of BB) | ||||
| Stand Over Height (Lowest Point) | ||||
| Standover Height | 755 | 797 | 797 | 838 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 |
| Top Tube | ||||
| Top Tube (SLACK) | ||||
| Top Tube (STEEP) | ||||
| Trail | 60 | 60 | 60 | 60 |
| Wheelbase | 964 | 967 | 1008 | 1038 |
| Wheelbase (SLACK) | ||||
| Wheelbase (STEEP) |
